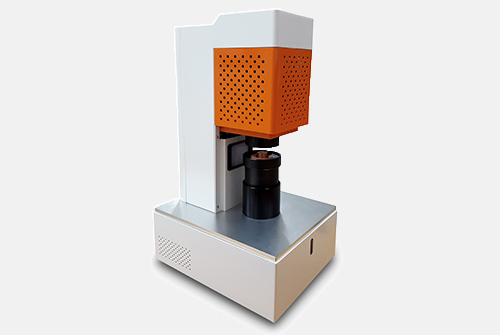

Thermal Conductivity Measurement System

다양한 재료의 열전도율 측정 : 방열테이프, Heat Sink, 세라믹, 금속호일 등

편리한 Auto Measurement ( Software 제공, RS485 통신지원 )

±0.001℃ resolution의 온도 측정

열평형측정법(Steady-state Heat Flux Method), 수직 측정

Information

- Test Method

ASTM D5470

1. Measuring Range : 0.1 ~ 80 W/mk

2. Thermal Resistance Range : 0.05 ~ 5.0 ℃/W

3. Regarding Sample Approval Sample Thickness

Approval Sample Thickness : 0.02 ~ 10 mm

4. Operation Temperature Range : 40 ~ 100 ℃

Feature

- Fully automatic operation by Quantum-E software

- Automatic pressure control

- High performance temperature controller built-in coolant system

( No need the coolant unit )

- Easy & simple caiculatio for Thermal conductivity

- Sealed structure for prevent influenced by outside

- Automatic adjusting measuring temperature conditions

SPEC

Model		TCM-100V
Sample		Fully Automatic System
Data		Data for bulk, actual, contact thermal residence & Eight segment for sequence data
		Heat Flex, Actual & Bulk thermal conductivity
		Confuctivity, Heat flux, Thermal conductivity according to thickness
Sample	Size	Thickness : 0.02~10mm, Dia : 25mm Circle
	Thickness Control	Auto (5, 10, 20% fixed) ~ 50% (Per 1% able to set by User)
Thermal resistance		0.05~5.0 ℃/w
Method		ASTM D-5470 Heat Flow
Pressure	Max	0~20.5kgf/cm², 290psi, 2,010kpa
Measurement Range		0.1~80 w/mk
Operation Temp.range		40~100 ℃
Cooling System		Patent Colling system
Dimension		230 x 310 x 540H (mm) : 9 x 12 x 21 (inch)
Electric Power		100~220v/50/60HZ Appx. 120W

※ Software Configuration
